8. Appendix

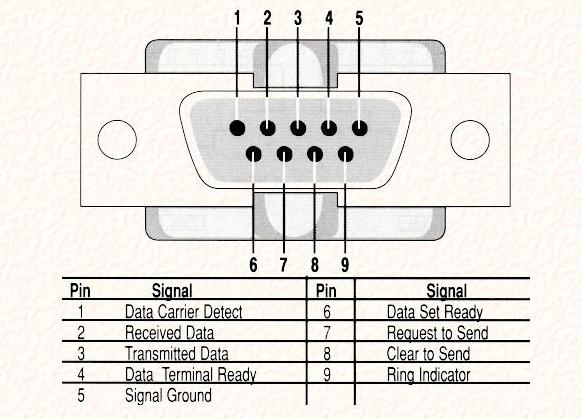

8.1 Serial Cable pin configuration as null cable

Here is the 9 pin(DB9) RS232 interface. Null cable is also called "crossed cable"

Null cable plugs with their pin numbers

A Plug B plug
2 and 3 3 and 2
4 and 6+1 6+1 and 4
5 5
7 and 8 8 and 7

8.2 My build machine hardware specifications

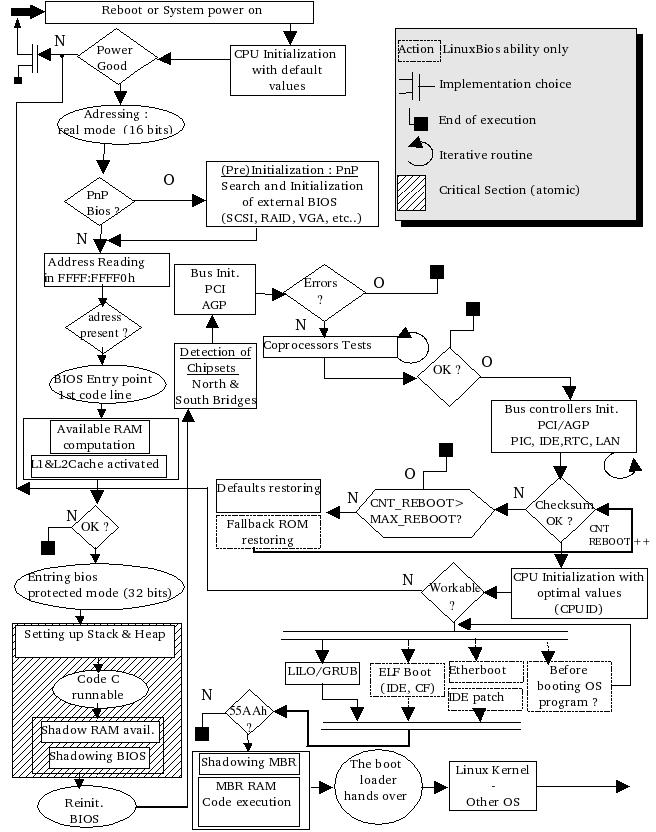

8.3 Bios boot sequence

This is a synpotic flowchart resuming the boot process of Linuxbios.

8.4 Kernel help! recovering procedure

In probable case you crashed your bootloader, i.e lilo (the std bootloader) freeze on "LI" display. A crashed kernel is mostly a problem if not other sane was prepared, but it is obviously not your case, isn't it ? The goal is to reach a sane command line, this a type a 'lilo' command for example. Here is a procedure to recover your MBR when you don't have a floppy drive and you just have a bootable Linux CD such as Red Hat Linux.

Objectives : Get a shell, mount partitions, disk integrity checkout, have a recovering 'lilo' command.

Type linux rescue at redhat type install CD boot menu. A menu invites you to configure language and keyboard. Then another menu comes, do the same for ethernet device eth0 and eventually setup ftp if you need to recover some config. files (ie rc.sysint or lilo.conf) from network. After Ananconda starts, access via CTRL+ALT+1 to first virtual terminal to check out if your bootable device /dev/hdaxx is present, otherwise come back via CTRL+ALT+7 to let pass some menus before coming back again to first terminal.

All is right ? Ok, now remount your partition in read write mode with mount -no remount,rw /. Mount root partition i.e hda3 like this mkdir /hda then mount /dev/hda3 /hda3. Do same for other partitions, especially those where /etc /sbin resides. Chroot yourself : chroot / /bin/sh. If your keyboard is buggy type a loadkeys en to reset it to your language (here english). At last, you can edit your lilo.conf and launch a /sbin/lilo before exiting for maintenance mode with CTRL+D. Synchronise partitions with sync and reboot reboot.

8.5 Kernel minimal toolchain requierement

Compound Min. version requiered Current version
GNU C 2.91.66 "egcs1.1.2" * gcc --version
GNU Make 3.77 make --version
Binutils ld -v
Util-linux 2.10o fdformat --version
modutils 2.4.0 insmod -V
e2fs progs 1.19 tune2fs --version
pcmcia-cs 3.1.21 cardmgr -V
ppp 2.4.0 pppd --version
isdn4k-utils 3.1 beta 7 isdnctrl 2>&1
Software toolchain minimal requierements to build a Linuxbios kernel

* Note : "egcs 1.1.2" is the sole official version recommended to build a stable kernel.

8.6 Linuxbios minimal toolchain requierement

CompoundMin. version requiered Current version
GNU C 3.2.2 gcc --version
GNU Make 3.77 make --version
Binutils 2.14.90 ld -v
CVS 1.11.6 cvs --version
Python 2.3 python -V
Software toolchain minimal requierements to build Linuxbios

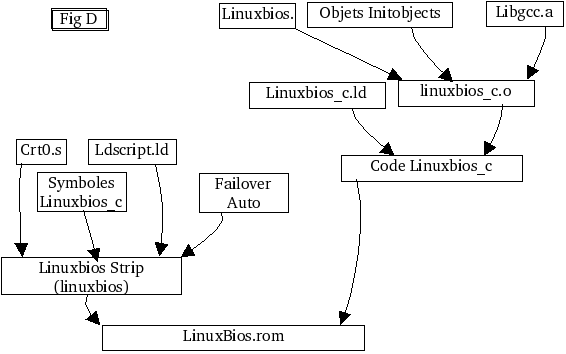

8.7 Targets building dependencies synoptic flowchart

8.8 Linuxbios tables, CMOS Table utilities overview

        + Restores a Rom image +
bios_restore /dev/mtd_x romimage [--vendor VENDOR] [--part PART]

        + Save Bios content in a Rom image file +
bios_save    /dev/mtd_x romimage [--vendor VENDOR] [--part PART]

        + A utility to edit CMOS 'RAM settings' configuration
cmos_util [-d|-u|-s|-h]   [--image file]      [--outpout_image file]
          [--layout file] [--new_layout file] [settings file]

lxbios  + Reads and writes Linuxbios table parameters

lbflash + a flash solution dedicated to MTD DOC chip for Linuxbios
          also make a checkout with motherboard type.

8.9 Logging and communication scripts

Hear script which retrieves debug strings.

# Hear script listen & log onto ttyS0 (serial port a.k.a COM1)
VERSION="24/05/04|09:32:49 MD"
i="Bienvenu(e) dans Hear! v. $VERSION j'ecoute sur ttyS0 ..."
if [ "x$1" = "x" ]; then
   echo "Usage $0 log_to_file"
   exit 0
echo $i
echo "Logging in $LOG"
stty ispeed 115200
stty | tee -a "$LOG"
echo "****************************************************" >>"$LOG"
echo " Hear! Boot Log started on `date +%d/%m/%y\|%T` " >> "$LOG"
echo " tty in use : $ter from ttyS0 " >>"$LOG"
echo "****************************************************" >>"$LOG"
   /usr/bin/time -pao "$LOG" -- cat -sbA < /dev/ttyS0 | tee -a "$LOG"
   ./ "$LOG" -s
   echo "----------------------------------------------" >> "$LOG"
   echo -e "\n"
   echo "Please add a comment to this boot log .."
   sleep 3
   vi tmp
   echo -e "Comments :\n" >> "$LOG"
   cat tmp >> "$LOG"
   rm -f tmp
   echo "done."

Digest script which is used by Hear! to have a nice human-readable display

# Script to digest hard-human readable hear! logs
# Mathieu Deschamps for mangrove-systems
VERSION="11/05/04|09:40:28 MD"
DAT="`date +%d\-%m\-%y\ %T`"
if [ "x$1" = "x" ]; then
         echo "usage: $0 hear!_log_file [--suppress-log,-s] "
         echo "v. $VERSION"
         exit 0
[ "x$2" = "x-s" ] || [ "x$2" = "x--suppress-log" ]     && SUPP=1
if [ -f "$FIL.adv" ]; then
   mv "$FIL.adv" "$FIL.adv.$DAT"
cat $FIL | while read line;
                  [ "x$line" != "x$" ] && echo "$line"
         done > "$FIL.adv"
mv -f $FIL $FIL.digested
mv -f $FIL.adv $FIL
( [ $? -eq 0 ]; echo "$FIL digested, rename old as $FIL.digested" ) ||
echo "Digestion gets harden ...blurp (error) "
[ $SUPP -eq 1 ] && rm -f $FIL.digested 2>&1 >/dev/null

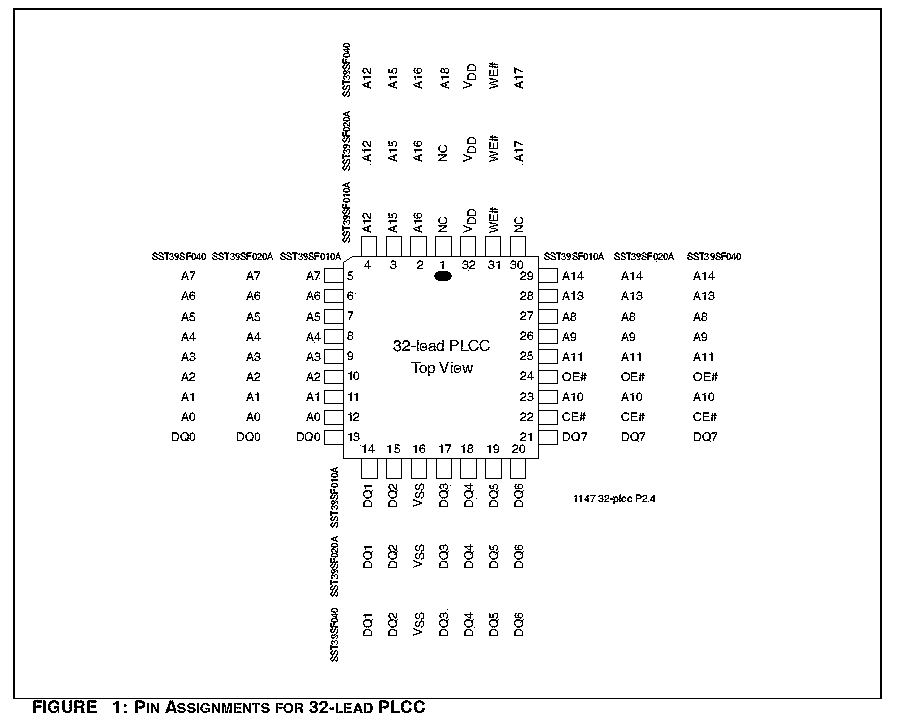

8.10 SST SST39SF series EEPROM chip of PLCC casing

8.11 Linuxbios maillist archives compass

Pipermail Record date Subjects or Topics
2002-October, 2002-November ADLO
2002-December VGA Splash screen
2003-April Xfree, IDE boot, CF boot
2003-September Command line boot options
2004-February Use of CF

8.12 Howto prepare and make a ELF kernel payload with MkelfImage

mkelfImage --kernel=/usr/src/linux-2.4/vmlinux \
                      --command-line=''console=ttyS0,115200n8 \

Into kernel option, any gzip compressed Image file makes the deal. Now if you launch a 'file', it will answer not stripped. If you want to reduce it a bit more, you can strip it and Image file debug & comments sections will be dropped. Follow this :

                strip file.elf
                objcopy -R .note -R .comment file.elf

Now file.elf.stripped which can be rename to file.elf if you want contains strictly want is needed to be loaded. You can check this out by yourself this way :

                objdump file.elf -t

If you want it to be booted from i.g /dev/hda3 which is root partition, you need to copy the first 4Ko on it. Do it this way:

                dd if=file.elf of=/dev/hda3 bs=4096 seek=1

8.13 Graphic tests scripts

Script that tests direct writing to stress I/O to frame buffer fb0

# /root/img is a test bitmap
while [ $i -ne 60 ]; do
  cat /root/img >/dev/fb0
# sleep 1
  xrefresh -display 0:0
i=` expr $i + 1 `

Script that tests frame buffer device's graphic modes

if [ "x$1" = "x" ]; then
   echo "Usage : $0 -test | -do "
if [ "$1" = "-test" ]; then
for i in `cat /etc/fb.modes | grep "mode " | cut -f2 -d"\""`;do echo -n
"Testing $i"; T=`fbset -x --test "$i"`; [ $T ] && echo -e" \t\t '!'" ||
echo -e " \t\t Ok ";done
if [ "$1" = "-do" ]; then
for i in `cat /etc/fb.modes | grep "mode " | cut -f2 -d"\""`;do echo -n
"Doing $i"; T=`fbset -x "$i"`; [ $T ] && echo -e" \t\t '!'" ||  echo -e "
\t\t Ok ";done
